kitten playing with trackers okay, so, my tinkering with Bluetooth beacons/trackers begins

I bought a bunch to be able to play around and see which one its holder likes the most
:drgn_heart@not.an.evilcyberhacker.net:1👀1💜1
3
1
6
3
User avatar
pathetic piss kitten @kitten@elizabeth.cat
9mo
kitten playing with trackers first contender: nrf51822 (like almost all the boards), with an incorporated SHT30 temperature and humidity sensor, using a CR2032 battery

this one is my favorite for the moment, both because of the neat small form factor, and because the seller provides the pinout for the board... except mine doesn't match any of the ones they provide..but I asked them, see if they can provide it.

a.aliexpress.com/_EJjjOxI
small black PCB with a nrf51822 microcontroller in it and a small button in the center

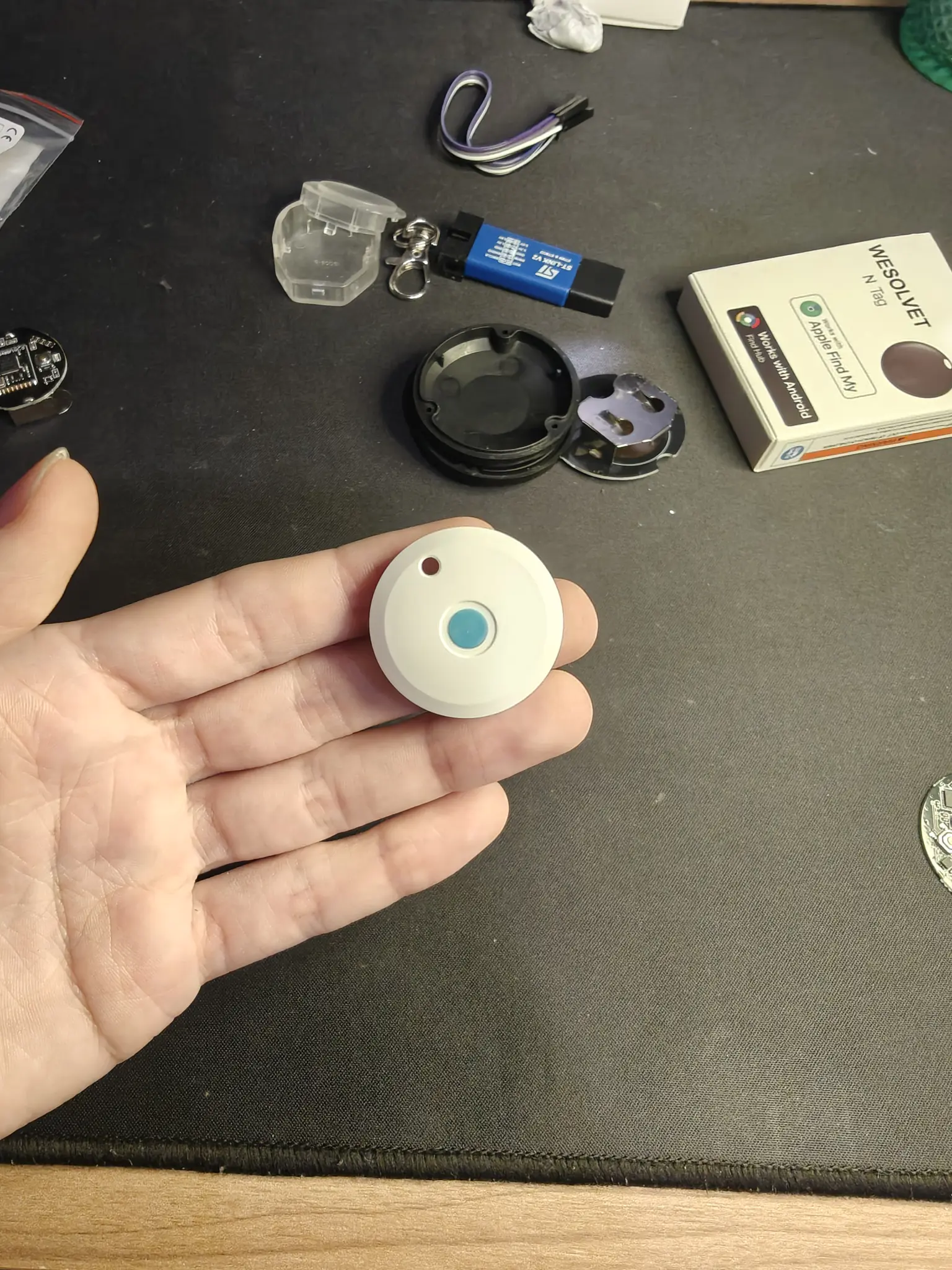

the board inside its white plastic case, with a blue plastic button, in my hand
:drgn_heart@not.an.evilcyberhacker.net:1❤️1
1
0
3
2
User avatar
pathetic piss kitten @kitten@elizabeth.cat
9mo
kitten playing with trackers the second, another nrf51822, this time by itself, and this time using a CR2477 battery

this one... is not looking good. it's just too big, and that's with half the PCB empty. besides, the case has no way of attaching it to anything

it does have an upside though: I found the datasheet in the internet, with the pinout. not only that, it has 4 available digital I/O pins, which means: potential

a.aliexpress.com/_EHqjtVA

www.holyiot.com/tp/2019042814310092401.pdf
big black PCB with a chip in the middle, marking "N51822" barely visible
the chip in a big bulky black round case, in my hand
:drgn_heart@not.an.evilcyberhacker.net:1❤️2
3
1
5
3
User avatar
pathetic piss kitten @kitten@elizabeth.cat
9mo
kitten playing with trackers and the last one! this one I bought to see if anything could be done with it, but it's not an nrf51822, so I don't know if I will be able to flash it. it has a st17h65b chip

I bought it for two reasons: it's factory compatible with both Apple's FindMy network and Google's Find Hub, and it has an integrated speaker that can beep! the form factor is also very nice

a.aliexpress.com/_EJau7Zq
larger black PCB with a lot more components in it
larger but flatter case with a button and some leds
:drgn_heart@not.an.evilcyberhacker.net:1
2
0
1
1
User avatar
Lis (≙) retired account @lis@luisa.is
9mo
kitten playing with trackers @kitten I like the case of this one, it’s black neocat_aww
1
0
0
0
User avatar
pathetic piss kitten @kitten@elizabeth.cat
9mo
kitten playing with trackers @lis yes!!

although at least all of them are black in the inside
:neocat_heart_black@luisa.is:1
0
0
0
1
User avatar
Maaike 🔜 eth0 @ayke@blahaj.social
9mo
kitten playing with trackers @kitten haven't heard about that chip before! It's not on Mouser or Digi-Key so must be kinda rare. Perhaps only meant for the Chinese market?
Looking at the datasheet it looks quite capable, it has a Cortex-M0 and plenty of flash/RAM.
1
0
0
0
User avatar
pathetic piss kitten @kitten@elizabeth.cat
9mo
kitten playing with trackers @ayke it seems very associated to these tracking devices, yes
0
0
0
0
User avatar
pathetic piss kitten @kitten@elizabeth.cat
9mo
kitten playing with trackers the third one, also nrf51822, this one is a bit weird... two button, and it's clearly a devboard embedded in a larger PCB. also CR2477

I found sort of a pinout, and it has plenty of gpio available... the case is weird though, no easy way of attaching it to anything, although it has some holes in it that could be used

a.aliexpress.com/_EGPL3pO
weirdly shaped black PCB, with a chip in the middle marked N51822, and a button on its side
the PCB in its transparent case, in a similar weird shape
the pinout for the devboard. with the antenna on the top, and the chip facing the viewer, the left side is: ANT, P0.22, P0.23, P0.24, P0.00, P0.01, P0.02, P0.03, P0.04 and the right side: P0.18, SWCLK, SWDIO, P0.16, P0.15, P0.12, P0.08, GND, VCC
:drgn_heart@not.an.evilcyberhacker.net:1
2
0
2
1
User avatar
pathetic piss kitten @kitten@elizabeth.cat
9mo
kitten playing with trackers oh no I messed up the order of the posts here
1
0
1
0
User avatar
pathetic piss kitten @kitten@elizabeth.cat
9mo
kitten playing with trackers update for tracker : pinout found and someone already tried stuff in it

github.com/seemoo-lab/openhaystack/issues/35#issuecomment-828338751
:drgn_heart@not.an.evilcyberhacker.net:1
1
0
4
1
User avatar
pathetic piss kitten @kitten@elizabeth.cat
9mo
kitten playing with trackers I'm wondering which network will work better here, Google's or Apple's ​:neocat_think:​
:drgn_heart@not.an.evilcyberhacker.net:1
2
0
4
1
User avatar
pathetic piss kitten @kitten@elizabeth.cat
9mo
kitten playing with trackers okay, so, flashing attempt !

first of all, I need to solder those cables on the tag's pins, let's see how it goes

(I should clean that mat, I know)
my desktop, with a black mat, and on top of it some soldering supply, a soldering iron, the Bluetooth tag, and some jumper cables cut in half
❤️1
3
0
5
1
User avatar
pathetic piss kitten @kitten@elizabeth.cat
9mo
kitten playing with trackers well, after a lunch break, and after getting up to speed after so much time without soldering, I think I got it

(btw, every time I try to use a soldering tip that isn't the BC2 I end up regretting it)

let's see if that's good enough
tag #1 with half jumper cables soldered to the 4 relevant pins
1
0
6
0
User avatar
pathetic piss kitten @kitten@elizabeth.cat
9mo
kitten playing with trackers aaaaand it seems it worked!! I made a backup of the firmware originally in the tag. let's write OpenHaystack's one
three terminal windows with OpenOCD running in one, a telnet session where I communicate with the tag, and queried a backup in other, and the hexdump of the dumped firmware in the third
:drgn_heart@not.an.evilcyberhacker.net:1:neocat_aww@polycule.li:1
1
0
8
2
User avatar
Lis (≙) retired account @lis@luisa.is
9mo
kitten playing with trackers @kitten neocat_chew_wire
:blobcatgiggle:1❤️1
0
0
0
2
User avatar
Maaike 🔜 eth0 @ayke@blahaj.social
9mo
kitten playing with trackers @kitten that flux looks like a nail polish bottle?? Didn't know they made flux like that, seems handy.
1
0
0
0
User avatar
pathetic piss kitten @kitten@elizabeth.cat
9mo
kitten playing with trackers @ayke yes! very handy indeed
1
0
0
0
User avatar
Maaike 🔜 eth0 @ayke@blahaj.social
9mo
cursed, don't @kitten now I need to empty a nail polish bottle to use for this purpose
1
0
0
0
User avatar
pathetic piss kitten @kitten@elizabeth.cat
9mo
cursed, don't @ayke ​:blobCat_eyes:​
0
0
0
0
User avatar
Maaike 🔜 eth0 @ayke@blahaj.social
9mo
kitten playing with trackers @kitten I was actually looking into whether I could reimplement the Google system. Might do that, there's code for that online:
